Model 5 - Retractable Awning - Price Table

Economical Yet Durable with 12 Years Warranty
;

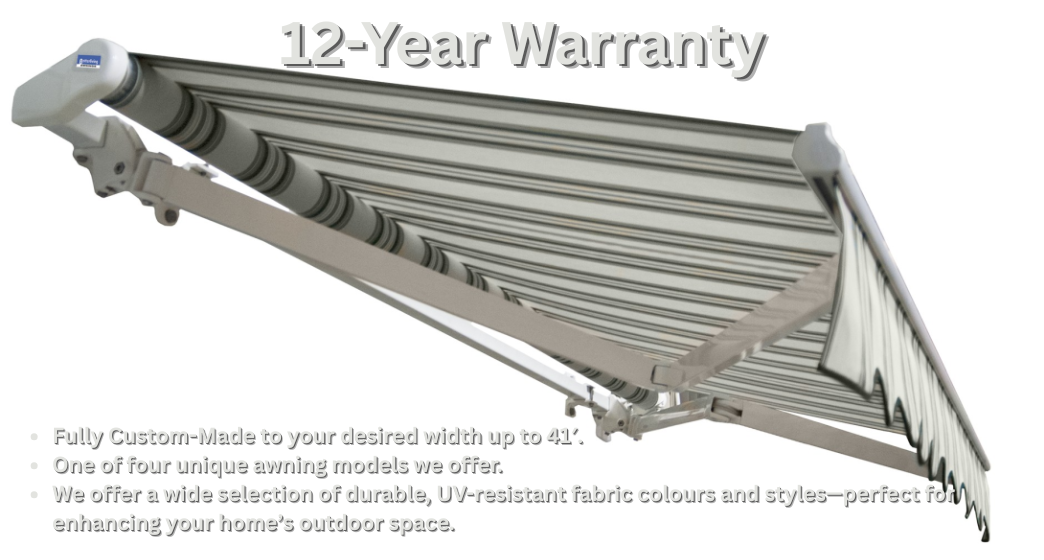

Retractable awning with 12-year warranty- Model 5
Model 5 – Economical Retractable Awning Price Table | Retractable Awning Store

Model 5 – Economical Retractable Awning Price Table

Economical Yet Durable — 12-Year Warranty, Same Great Fabric

Step 1

Select Your Width & Projection

Select the width and projection from the tables below. Prices include the awning frame and Northport fabric with an 8 in valance — no cassette/hood or tray unless noted.

Example: An awning with a 12 ft width and 10 ft 2 in projection is priced at $3,474 — base model, no cassette or tray.
ℹ️  Width is measured end-to-end of the cassette. Projection is measured from the back of the cassette to the front bar. Tolerances are ¼ in. Fabric is Northport with an 8 in valance. Frame colour: White only.

Model 5 Eko — Economical

The same high-quality Northport fabric and 12-year warranty as our other models, at a lower price point. Fewer size options and white frame only — but an excellent value for those who don't need the full feature set of Model 1.

Cassette & Hood

In Model 5, the cassette and hood are an optional upgrade (not standard). The cassette housing encloses the fabric roll on top, protecting it from debris and weather. Recommended for motorized awnings and exposed installations.

Fabric Tray

A continuous aluminum tray beneath the full length of the fabric roll. Prevents sagging when extended and protects the underside of the fabric when closed. Included with the Cassette Hood & Tray upgrade.

Base (No Cassette)

Awning frame and fabric only — lowest price option

+ Cassette, Hood & Tray

Adds top cassette, hood, and fabric tray for full protection

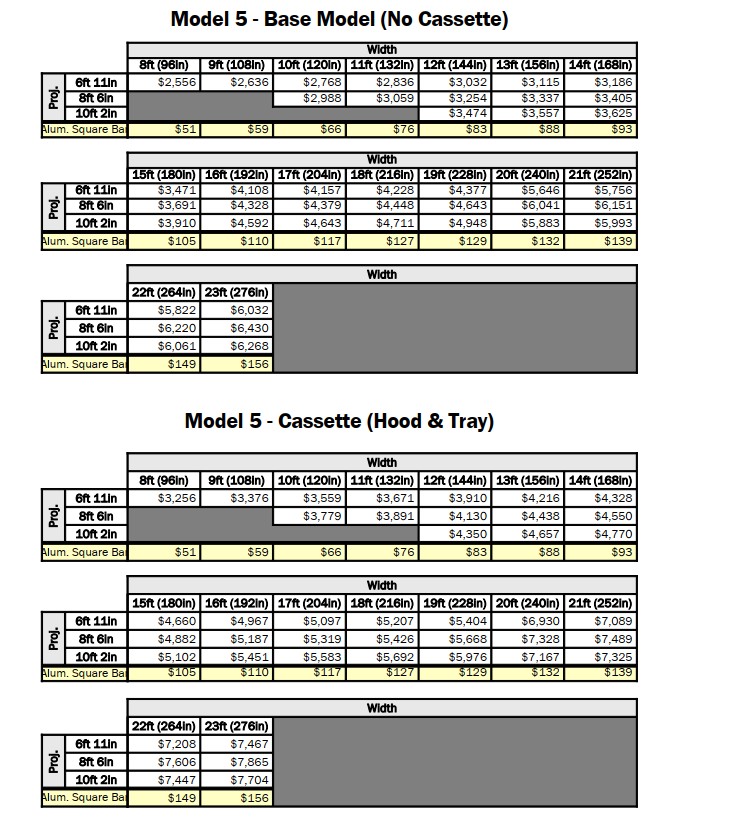

Base Model — No Cassette
The standard Model 5 awning — frame and fabric with no cassette housing, hood, or tray. The most affordable option, best suited for sheltered installations under a deep soffit.

Widths 8 ft – 14 ft

8 ft (96 in)9 ft (108 in)10 ft (120 in)11 ft (132 in)12 ft (144 in)13 ft (156 in)14 ft (168 in)
Proj.6 ft 11 in$2,556$2,636$2,768$2,836$3,032$3,115$3,186
8 ft 6 in——$2,988$3,059$3,254$3,337$3,405
10 ft 2 in————$3,474$3,557$3,625
Alum. Square Bar$51$59$66$76$83$88$93

Widths 15 ft – 21 ft

15 ft (180 in)16 ft (192 in)17 ft (204 in)18 ft (216 in)19 ft (228 in)20 ft (240 in)21 ft (252 in)
Proj.6 ft 11 in$3,471$4,108$4,157$4,228$4,377$5,646$5,756
8 ft 6 in$3,691$4,328$4,379$4,448$4,643$6,041$6,151
10 ft 2 in$3,910$4,592$4,643$4,711$4,948$5,883$5,993
Alum. Square Bar$105$110$117$127$129$132$139

Widths 22 ft – 23 ft

22 ft (264 in)23 ft (276 in)
Proj.6 ft 11 in$5,822$6,032
8 ft 6 in$6,220$6,430
10 ft 2 in$6,061$6,268
Alum. Square Bar$149$156
With Cassette, Hood & Tray
This upgrade adds the aluminum cassette housing (top cover) and fabric tray (bottom support) to your Model 5. The cassette protects the fabric roll from rain, snow, and debris from above; the tray supports the fabric from below and shields it when closed. Recommended for motorized awnings and exposed installations.

Widths 8 ft – 14 ft

8 ft (96 in)9 ft (108 in)10 ft (120 in)11 ft (132 in)12 ft (144 in)13 ft (156 in)14 ft (168 in)
Proj.6 ft 11 in$3,256$3,376$3,559$3,671$3,910$4,216$4,328
8 ft 6 in——$3,779$3,891$4,130$4,438$4,550
10 ft 2 in————$4,350$4,657$4,770
Alum. Square Bar$51$59$66$76$83$88$93

Widths 15 ft – 21 ft

15 ft (180 in)16 ft (192 in)17 ft (204 in)18 ft (216 in)19 ft (228 in)20 ft (240 in)21 ft (252 in)
Proj.6 ft 11 in$4,660$4,967$5,097$5,207$5,404$6,930$7,089
8 ft 6 in$4,882$5,187$5,319$5,426$5,668$7,328$7,489
10 ft 2 in$5,102$5,451$5,583$5,692$5,976$7,167$7,325
Alum. Square Bar$105$110$117$127$129$132$139

Widths 22 ft – 23 ft

22 ft (264 in)23 ft (276 in)
Proj.6 ft 11 in$7,208$7,467
8 ft 6 in$7,606$7,865
10 ft 2 in$7,447$7,704
Alum. Square Bar$149$156
Step 2

Choose Your Options & Customizations

Once you've selected your awning size, choose from the options below.

Example: $3,474 (12 ft wide × 10 ft 2 in projection) + $352 (manual gear) + $63 (59 in crank handle) = $3,889 total — ask about our current DIY promotion.

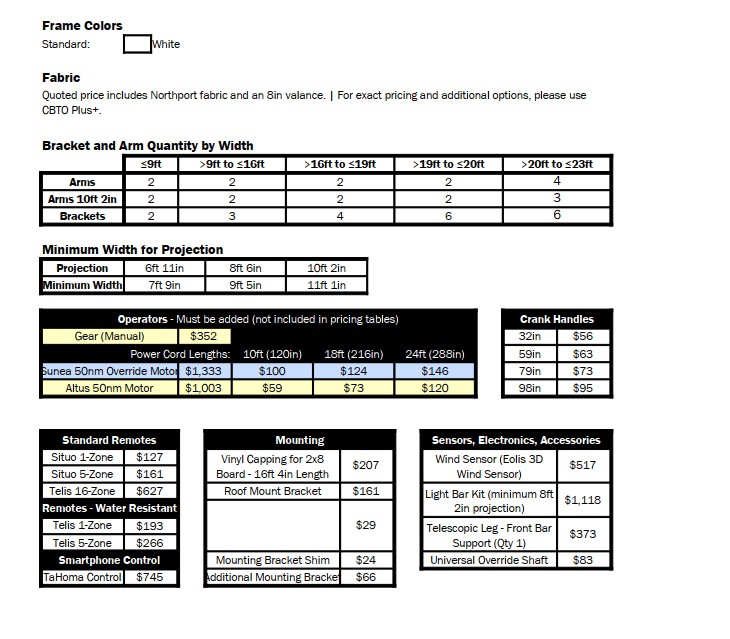

Operators — Must be added (not included in pricing tables above)
OptionBase Price10 ft cord (120 in)18 ft cord (216 in)24 ft cord (288 in)
Gear (Manual)$352———
Sunea 50nm Override Motor$1,333$100$124$146
Altus 50nm Motor$1,003$59$73$120
Crank Handles
LengthPrice
32 in$56
59 in$63
79 in$73
98 in$95
Standard Remotes
RemotePrice
Situo 1-Zone$127
Situo 5-Zone$161
Telis 16-Zone$627
Remotes — Water Resistant
RemotePrice
Telis 1-Zone$193
Telis 5-Zone$266
Smartphone Control
OptionPrice
TaHoma Control$745
Bracket & Arm Quantity by Width
Component≤9 ft>9–16 ft>16–19 ft>19–20 ft>20–23 ft
Arms22224
Arms (10 ft 2 in proj.)22223
Brackets23466
Minimum Width for Projection
Projection6 ft 11 in8 ft 6 in10 ft 2 in
Min. Width7 ft 9 in9 ft 5 in11 ft 1 in
Mounting
ItemPrice
Vinyl Capping for 2×8 Board – 16 ft 4 in Length$207
Roof Mount Bracket$161
Ledger Board Lags 4in × 5/16in Galvanized w/ Washers (Qty 25)$29
Mounting Bracket Shim$24
Additional Mounting Bracket$66
Sensors, Electronics & Accessories
ItemPrice
Wind Sensor (Eolis 3D Wind Sensor)$517
Light Bar Kit (min. 8 ft 2 in projection)$1,118
Telescopic Leg – Front Bar Support (Qty 1)$373
Universal Override Shaft$83
Step 3

Order Your Awning — Arrives in 6–7 Weeks

We understand that choosing the right awning can feel overwhelming — we're here to help. Fill out the form and our team will get in touch to help you finalize your order.
Do not forget to ask about our current DIY promotion.





    Visit Our Showroom & Factory

    25 Green Ct, Unit 3
    Ajax, ON L1S 6W9
    Canada

    ☎ (800) 668 6430, ext. 21

    Craft-Bilt Head Office, Ajax Ontario

    Model 5 – Economical Retractable Awning

    The Model 5 Eko delivers the same quality Northport fabric and 12-year warranty as our premium models at a more accessible price. Fewer size options and white frame only — but if your space fits within the available widths and projections, it's an outstanding value.

    Key Features:

    • 12-Year Warranty — same as all Betterliving™ models
    • Custom-made to your desired width up to 23 ft
    • 3 projection options: 6 ft 11 in, 8 ft 6 in, 10 ft 2 in
    • White frame only
    • One of four unique awning models we offer
    • Wide selection of durable, UV-resistant fabric colours and styles
    • Northport fabric with 8 in valance included
    • Optional Cassette Hood & Tray upgrade available

    * Product prices and configurations are subject to change without prior notice. Sometimes, DIY sales are only available through a local contractor; in such cases, any DIY or promotional pricing on this website does not apply.
