Model 4 – Full Cassette Retractable Awning Price Table

Manor Awning — Total Coverage, Maximum Weather Protection

Step 1

Select Your Width & Projection

Select the width and projection from the tables below. Prices include the awning frame and Northport fabric — valance is not included in Model 4 pricing.

Example: An awning with a 12 ft width and 9 ft 10 in projection is priced at $6,747 — base model, no tray or back.

ℹ️ Width is measured end-to-end of the cassette. Projection is measured from the back of the cassette to the front bar. Tolerances are ¼ in. Fabric is Northport. Note: Model 4 is a full cassette — the cassette housing itself fully encloses and protects the fabric roll when closed. No separate hood option is offered or needed.

Full Cassette (Model 4)

Unlike semi-cassette models, Model 4's aluminum housing completely encloses the fabric roll and front bar when closed. This "Manor" design provides built-in weather protection — no separate hood is needed or available. It's the premium, most complete cassette protection we offer.

Fabric Tray

A continuous aluminum tray beneath the full length of the fabric roll. Prevents sagging when extended and protects the underside of the fabric from dirt and debris when closed. An upgrade from the base model.

Back Cover

Protects the rear of the awning where it meets the wall — the most vulnerable point on a roof-mounted installation where snow and water can collect. Essential for roof-mounted installs in heavy snow or rain regions.

Base (No Tray, No Back)

Full cassette with fabric only — good for sheltered installations

+ Tray & Hood

Adds fabric tray for extra support and underside protection

+ Tray, Hood & Back

Roof-mounted installs, heavy snow/rain regions

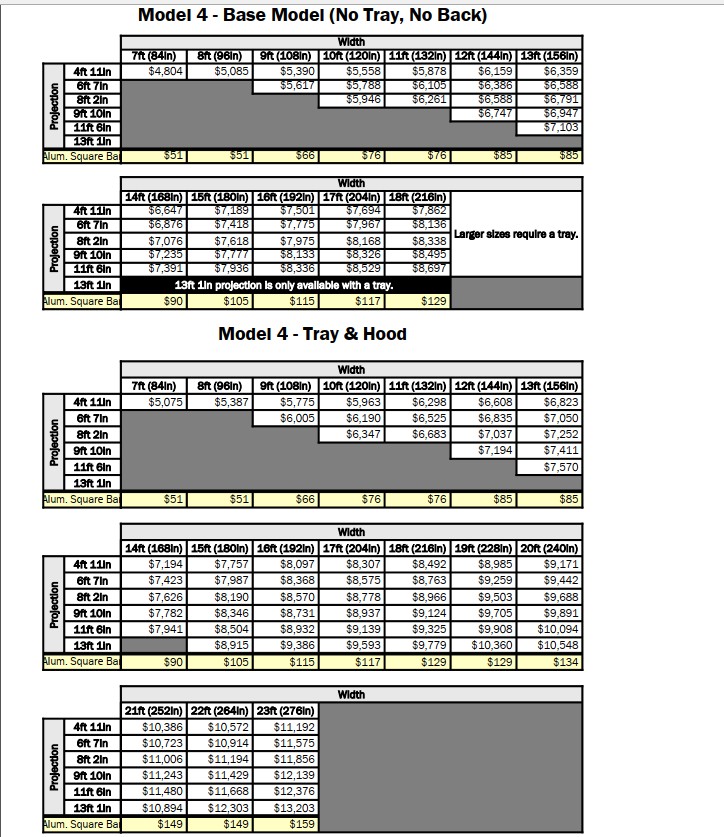

Base Model — No Tray, No Hood, No Back

The standard Model 4 full cassette awning with Northport fabric. The cassette housing fully encloses the fabric roll when closed — no separate hood is needed. Best for sheltered installations. Note: 13 ft 1 in projection requires a tray and is not available in the base model.

Widths 7 ft – 13 ft

		7 ft (84 in)	8 ft (96 in)	9 ft (108 in)	10 ft (120 in)	11 ft (132 in)	12 ft (144 in)	13 ft (156 in)
Projection	4 ft 11 in	$4,804	$5,085	$5,390	$5,558	$5,878	$6,159	$6,359
	6 ft 7 in	—	—	$5,617	$5,788	$6,105	$6,386	$6,588
	8 ft 2 in	—	—	—	$5,946	$6,261	$6,588	$6,791
	9 ft 10 in	—	—	—	—	—	$6,747	$6,947
	11 ft 6 in	—	—	—	—	—	—	$7,103
	13 ft 1 in	13 ft 1 in projection is only available with a tray — see table below.
	Alum. Square Bar	$51	$51	$66	$76	$76	$85	$85

Widths 14 ft – 18 ft · Larger sizes require a tray.

		14 ft (168 in)	15 ft (180 in)	16 ft (192 in)	17 ft (204 in)	18 ft (216 in)
Projection	4 ft 11 in	$6,647	$7,189	$7,501	$7,694	$7,862
	6 ft 7 in	$6,876	$7,418	$7,775	$7,967	$8,136
	8 ft 2 in	$7,076	$7,618	$7,975	$8,168	$8,338
	9 ft 10 in	$7,235	$7,777	$8,133	$8,326	$8,495
	11 ft 6 in	$7,391	$7,936	$8,336	$8,529	$8,697
	13 ft 1 in	13 ft 1 in projection is only available with a tray — see table below.
	Alum. Square Bar	$90	$105	$115	$117	$129

With Tray & Hood

The fabric tray is a continuous aluminum channel beneath the full length of the fabric roll — prevents sagging and protects the underside when closed. In Model 4, the tray option also includes the hood (top cover), since the full cassette design already provides top protection and the tray adds complete bottom coverage.

Widths 7 ft – 13 ft

		7 ft (84 in)	8 ft (96 in)	9 ft (108 in)	10 ft (120 in)	11 ft (132 in)	12 ft (144 in)	13 ft (156 in)
Projection	4 ft 11 in	$5,075	$5,387	$5,775	$5,963	$6,298	$6,608	$6,823
	6 ft 7 in	—	—	$6,005	$6,190	$6,525	$6,835	$7,050
	8 ft 2 in	—	—	—	$6,347	$6,683	$7,037	$7,252
	9 ft 10 in	—	—	—	—	—	$7,194	$7,411
	11 ft 6 in	—	—	—	—	—	—	$7,570
	13 ft 1 in	—	—	—	—	—	—	—
	Alum. Square Bar	$51	$51	$66	$76	$76	$85	$85

Widths 14 ft – 20 ft

		14 ft (168 in)	15 ft (180 in)	16 ft (192 in)	17 ft (204 in)	18 ft (216 in)	19 ft (228 in)	20 ft (240 in)
Projection	4 ft 11 in	$7,194	$7,757	$8,097	$8,307	$8,492	$8,985	$9,171
	6 ft 7 in	$7,423	$7,987	$8,368	$8,575	$8,763	$9,259	$9,442
	8 ft 2 in	$7,626	$8,190	$8,570	$8,778	$8,966	$9,503	$9,688
	9 ft 10 in	$7,782	$8,346	$8,731	$8,937	$9,124	$9,705	$9,891
	11 ft 6 in	$7,941	$8,504	$8,932	$9,139	$9,325	$9,906	$10,094
	13 ft 1 in	—	$8,915	$9,386	$9,593	$9,779	$10,360	$10,548
	Alum. Square Bar	$90	$105	$115	$117	$129	$129	$134

Widths 21 ft – 23 ft · Larger sizes must be built in two pieces.

		21 ft (252 in)	22 ft (264 in)	23 ft (276 in)
Projection	4 ft 11 in	$10,386	$10,572	$11,192
	6 ft 7 in	$10,723	$10,914	$11,575
	8 ft 2 in	$11,006	$11,194	$11,856
	9 ft 10 in	$11,243	$11,429	$12,139
	11 ft 6 in	$11,480	$11,668	$12,376
	13 ft 1 in	$10,894	$12,303	$13,203
	Alum. Square Bar	$149	$149	$159

With Tray, Hood, and Back

The back cover protects the rear of the awning where it meets the wall — the most vulnerable point on a roof-mounted installation where snow and water can run down and collect. Essential for roof-mounted installs in heavy snow or rain regions.

Widths 7 ft – 13 ft

		7 ft (84 in)	8 ft (96 in)	9 ft (108 in)	10 ft (120 in)	11 ft (132 in)	12 ft (144 in)	13 ft (156 in)
Projection	4 ft 11 in	$5,170	$5,512	$5,878	$6,090	$6,452	$6,784	$7,023
	6 ft 7 in	—	—	$6,105	$6,317	$6,679	$7,011	$7,250
	8 ft 2 in	—	—	—	$6,476	$6,835	$7,213	$7,452
	9 ft 10 in	—	—	—	—	—	$7,372	$7,609
	11 ft 6 in	—	—	—	—	—	—	$7,770
	13 ft 1 in	—	—	—	—	—	—	—
	Alum. Square Bar	$51	$51	$66	$76	$76	$85	$85

Widths 14 ft – 20 ft

		14 ft (168 in)	15 ft (180 in)	16 ft (192 in)	17 ft (204 in)	18 ft (216 in)	19 ft (228 in)	20 ft (240 in)
Projection	4 ft 11 in	$7,384	$7,965	$8,336	$8,570	$8,780	$9,237	$9,459
	6 ft 7 in	$7,609	$8,192	$8,607	$8,844	$9,051	$9,510	$9,730
	8 ft 2 in	$7,811	$8,395	$8,810	$9,044	$9,254	$9,754	$9,976
	9 ft 10 in	$7,970	$8,553	$8,966	$9,205	$9,410	$9,957	$10,179
	11 ft 6 in	$8,126	$8,709	$9,168	$9,405	$9,613	$10,159	$10,382
	13 ft 1 in	—	$9,120	$9,622	$9,857	$10,067	$10,611	$10,836
	Alum. Square Bar	$90	$105	$115	$117	$129	$129	$134

Widths 21 ft – 23 ft · Larger sizes must be built in two pieces.

		21 ft (252 in)	22 ft (264 in)	23 ft (276 in)
Projection	4 ft 11 in	$10,694	$10,906	$11,548
	6 ft 7 in	$11,033	$11,246	$11,934
	8 ft 2 in	$11,314	$11,529	$12,215
	9 ft 10 in	$11,553	$11,763	$12,495
	11 ft 6 in	$11,790	$12,000	$12,735
	13 ft 1 in	$11,202	$12,637	$13,560
	Alum. Square Bar	$149	$149	$159

Step 2

Choose Your Options & Customizations

Once you've selected your awning size, choose from the options below.

Example: $6,747 (12 ft wide × 9 ft 10 in projection) + $354 (manual gear) + $63 (59 in crank handle) = $7,164 total — ask about our current DIY promotion.

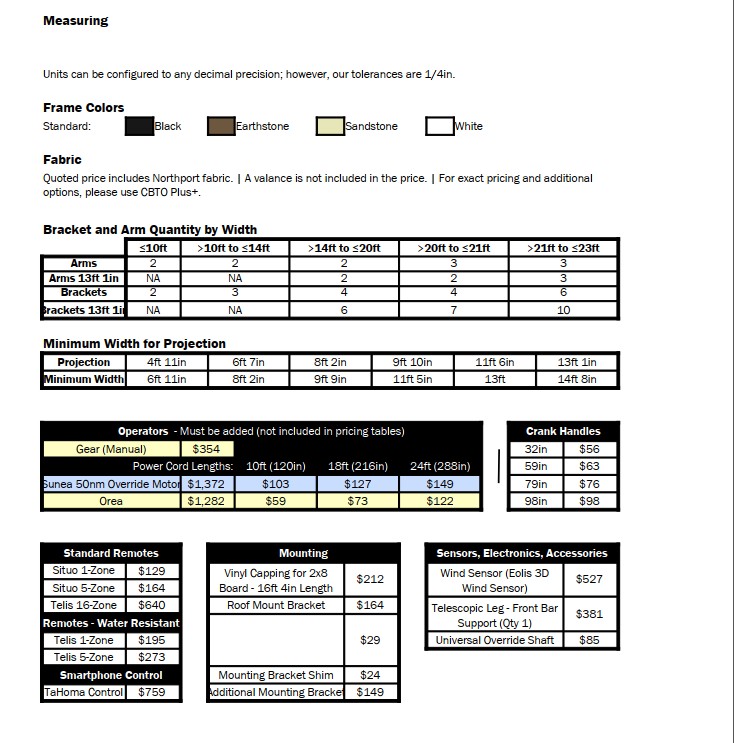

Operators — Must be added (not included in pricing tables above)

Option	Base Price	10 ft cord (120 in)	18 ft cord (216 in)	24 ft cord (288 in)
Gear (Manual)	$354	—	—	—
Sunea 50nm Override Motor	$1,372	$103	$127	$149
Orea Motor	$1,282	$59	$73	$122

Crank Handles

Length	Price
32 in	$56
59 in	$63
79 in	$76
98 in	$98

Standard Remotes

Remote	Price
Situo 1-Zone	$129
Situo 5-Zone	$164
Telis 16-Zone	$640

Remotes — Water Resistant

Remote	Price
Telis 1-Zone	$195
Telis 5-Zone	$273

Smartphone Control

Option	Price
TaHoma Control	$759

Bracket & Arm Quantity by Width

Component	≤10 ft	>10–14 ft	>14–20 ft	>20–21 ft	>21–23 ft
Arms	2	2	2	3	3
Arms (13 ft 1 in proj.)	N/A	N/A	2	2	3
Brackets	2	3	4	4	6
Brackets (13 ft 1 in proj.)	N/A	N/A	6	7	10

Minimum Width for Projection

Projection	4'11"	6'7"	8'2"	9'10"	11'6"	13'1"
Min. Width	6'11"	8'2"	9'9"	11'5"	13'	14'8"

Mounting

Item	Price
Vinyl Capping for 2×8 Board – 16 ft 4 in Length	$212
Roof Mount Bracket	$164
Ledger Board Lags 4in × 5/16in Galvanized w/ Washers (Qty 25)	$29
Mounting Bracket Shim	$24
Additional Mounting Bracket	$149

Sensors & Accessories

Item	Price
Wind Sensor (Eolis 3D Wind Sensor)	$527
Telescopic Leg – Front Bar Support (Qty 1)	$381
Universal Override Shaft	$85

Step 3

Order Your Awning — Arrives in 6–7 Weeks

We understand that choosing the right awning can feel overwhelming — we're here to help. Fill out the form and our team will get in touch to help you finalize your order.
Do not forget to ask about our current DIY promotion.

Visit Our Showroom & Factory

25 Green Ct, Unit 3
Ajax, ON L1S 6W9
Canada

☎ (800) 668 6430, ext. 21

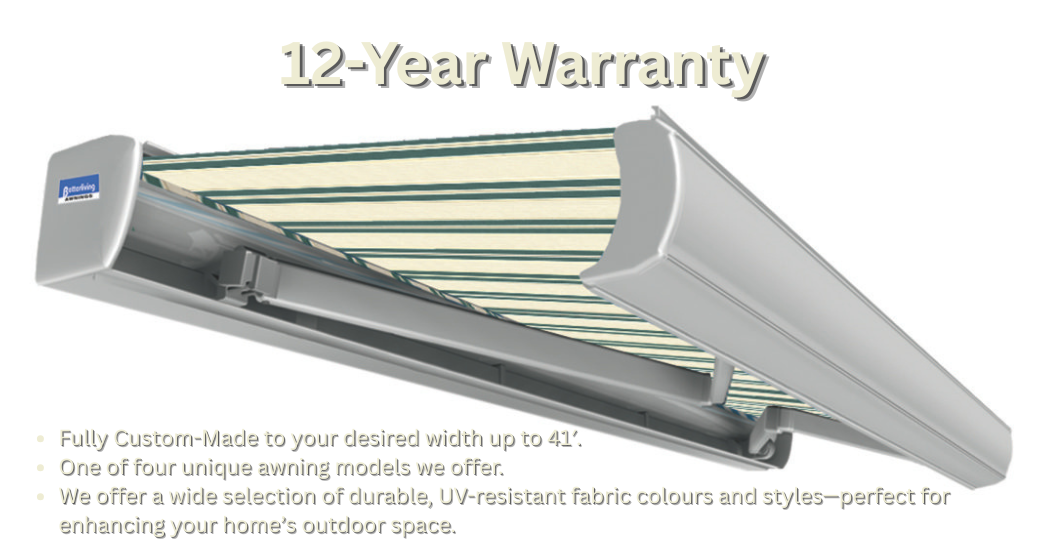

Model 4 – Full Cassette Retractable Awning

The Model 4 Manor is our most complete cassette awning. The fabric roll is fully enclosed in an aluminum housing — when closed, the large front profile completely seals the awning shut, providing maximum weather protection without needing a separate hood.

Key Features:

12-Year Warranty
Full cassette design — fabric completely enclosed when closed, no hood option needed
Custom-made to your desired width up to 41 ft
Six projection options from 4 ft 11 in up to 13 ft 1 in
One of four unique awning models we offer
Wide selection of durable, UV-resistant fabric colours and styles
Available frame colours: Black, Earthstone, Sandstone, White
Note: Valance is not included in Model 4 pricing. No Vario Valance option available.

* Product prices and configurations are subject to change without prior notice. Sometimes, DIY sales are only available through a local contractor; in such cases, any DIY or promotional pricing on this website does not apply.
