Model 2 - Retractable Awning - Price Table

When your deck is narrow but you want maximum shade — our Model 2 is designed to project out as far as possible to give you the coverage you need.

;

Model 2 Retractable Awning with 12-Years of Warranty

Model 2 – Narrow Width Retractable Awning Price Table | Retractable Awning Store

Model 2 – Narrow Width Retractable Awning Price Table

Slim-Fit Awning — Maximum Projection for Narrow Spaces

Step 1

Select Your Width & Projection

Select the width and projection from the tables below. Prices include the awning frame and fabric only — no hood, tray, or back unless noted.

Example: An awning with a 12 ft width and 9 ft 10 in projection is priced at $5,883 — awning only, no hood/tray/back.

ℹ️ Width is measured end-to-end of the cassette. Projection is measured from the back of the cassette to the front bar. Tolerances are ¼ in. Fabric is Northport with a 13 in valance; Vario Valance fabric is Textilene 80.

Slim-Fit (Model 2)

Designed for narrow deck openings where Model 1 won't fit. The folding arms overlap each other, allowing a narrower awning to project farther out. Max width: 15 ft.

Fabric Tray

A continuous aluminum tray beneath the full length of the fabric roll. Prevents sagging when extended and protects fabric from dirt and debris when closed.

Hood (Top Cover)

Aluminum cover on top of the fabric roll. Shields from rain, snow, and debris. Strongly recommended for motorized awnings and for installations without a soffit above.

Back Cover

Protects the rear where the awning meets the wall. Always includes the hood. Essential for roof-mounted installations in heavy snow or rain regions.

Base (No Tray/Hood/Back)

Under a deep soffit, mild climates

+ Tray

Better fabric support & protection when closed

+ Tray & Hood

Exposed installations, motorized awnings

+ Tray, Hood & Back

Roof-mounted installs, heavy snow/rain regions

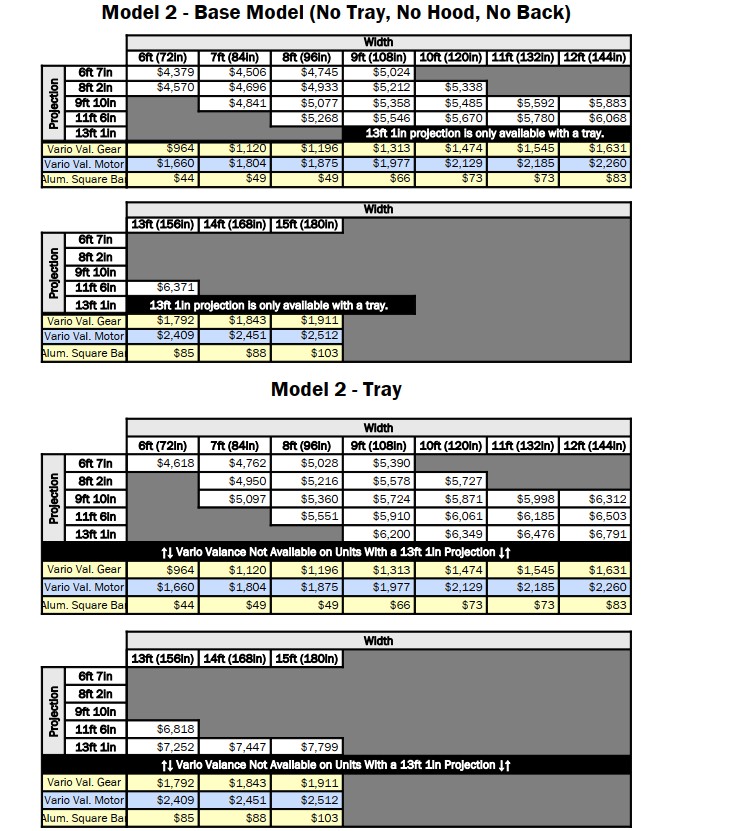

Base Model — No Tray, No Hood, No Back

Awning frame and fabric only. Best for installations under a deep soffit. Note: 13 ft 1 in projection requires a tray and is not available in this base configuration.

Widths 6 ft – 12 ft

		6 ft (72 in)	7 ft (84 in)	8 ft (96 in)	9 ft (108 in)	10 ft (120 in)	11 ft (132 in)	12 ft (144 in)
Projection	6 ft 7 in	$4,379	$4,506	$4,745	$5,024	—	—	—
	8 ft 2 in	$4,570	$4,696	$4,933	$5,212	$5,338	—	—
	9 ft 10 in	—	—	$4,841	$5,077	$5,358	$5,485	$5,883
	11 ft 6 in	—	—	—	$5,268	$5,546	$5,670	$6,068
	13 ft 1 in	13 ft 1 in projection is only available with a tray — see table below.
	Vario Valance – Gear	$964	$1,120	$1,196	$1,313	$1,474	$1,545	$1,631
	Vario Valance – Motor	$1,660	$1,804	$1,875	$1,977	$2,129	$2,185	$2,260
	Alum. Square Bar	$44	$49	$49	$66	$73	$73	$83

Widths 13 ft – 15 ft

		13 ft (156 in)	14 ft (168 in)	15 ft (180 in)
Projection	6 ft 7 in	—	—	—
	8 ft 2 in	—	—	—
	9 ft 10 in	—	—	—
	11 ft 6 in	$6,371	—	—
	13 ft 1 in	13 ft 1 in projection requires a tray — see With Tray table below.
	Vario Valance – Gear	$1,792	$1,843	$1,911
	Vario Valance – Motor	$2,409	$2,451	$2,512
	Alum. Square Bar	$85	$88	$103

With Tray

A continuous aluminum channel beneath the full length of the fabric roll. Prevents sagging when extended and protects fabric when closed. Required for the 13 ft 1 in projection.

Widths 6 ft – 12 ft · Vario Valance not available with 13 ft 1 in projection.

		6 ft (72 in)	7 ft (84 in)	8 ft (96 in)	9 ft (108 in)	10 ft (120 in)	11 ft (132 in)	12 ft (144 in)
Projection	6 ft 7 in	$4,618	$4,762	$5,028	$5,390	—	—	—
	8 ft 2 in	—	$4,950	$5,216	$5,578	$5,727	—	—
	9 ft 10 in	—	$5,097	$5,360	$5,724	$5,871	$5,998	$6,312
	11 ft 6 in	—	—	$5,551	$5,910	$6,061	$6,185	$6,503
	13 ft 1 in	—	—	—	—	$6,200	$6,349	$6,476
	Vario Valance – Gear	$964	$1,120	$1,196	$1,313	$1,474	$1,545	$1,631
	Vario Valance – Motor	$1,660	$1,804	$1,875	$1,977	$2,129	$2,185	$2,260
	Alum. Square Bar	$44	$49	$49	$66	$73	$73	$83

Widths 13 ft – 15 ft · Vario Valance not available with 13 ft 1 in projection.

		13 ft (156 in)	14 ft (168 in)	15 ft (180 in)
Projection	6 ft 7 in	—	—	—
	8 ft 2 in	—	—	—
	9 ft 10 in	—	—	—
	11 ft 6 in	$6,818	—	—
	13 ft 1 in	$7,252	$7,447	$7,799
	Vario Valance – Gear	$1,792	$1,843	$1,911
	Vario Valance – Motor	$2,409	$2,451	$2,512
	Alum. Square Bar	$85	$88	$103

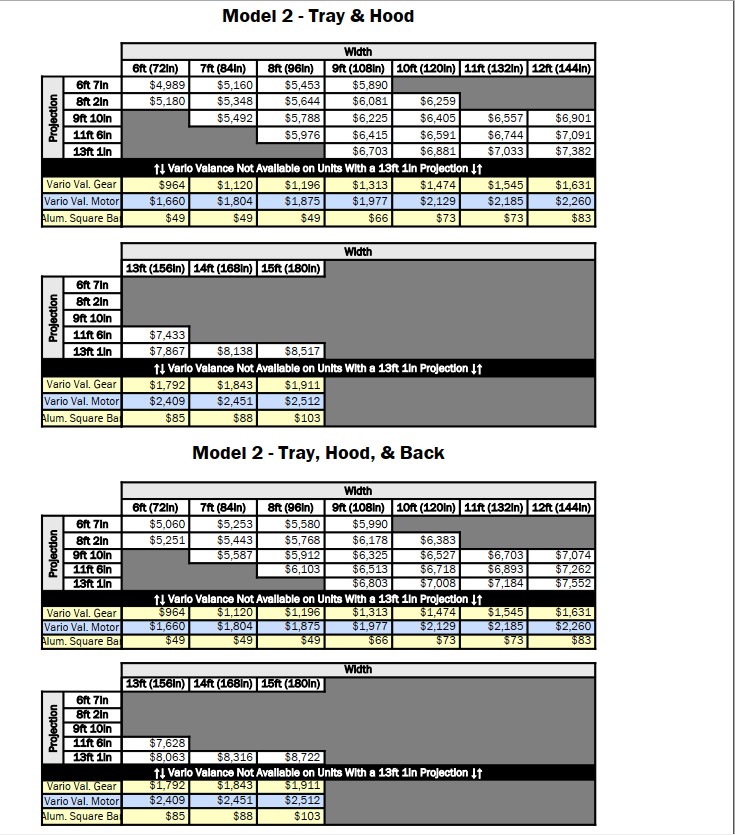

With Tray and Hood

Aluminum top cover protecting the fabric roll from rain, snow, and debris. Strongly recommended for motorized awnings and installations without a soffit overhead.

Widths 6 ft – 12 ft · Vario Valance not available with 13 ft 1 in projection.

		6 ft (72 in)	7 ft (84 in)	8 ft (96 in)	9 ft (108 in)	10 ft (120 in)	11 ft (132 in)	12 ft (144 in)
Projection	6 ft 7 in	$4,989	$5,160	$5,453	$5,890	—	—	—
	8 ft 2 in	$5,180	$5,348	$5,644	$6,081	$6,259	—	—
	9 ft 10 in	—	$5,492	$5,788	$6,225	$6,405	$6,557	$6,901
	11 ft 6 in	—	—	$5,976	$6,415	$6,591	$6,744	$7,091
	13 ft 1 in	—	—	—	$6,703	$6,881	$7,033	$7,382
	Vario Valance – Gear	$964	$1,120	$1,196	$1,313	$1,474	$1,545	$1,631
	Vario Valance – Motor	$1,660	$1,804	$1,875	$1,977	$2,129	$2,185	$2,260
	Alum. Square Bar	$49	$49	$49	$66	$73	$73	$83

Widths 13 ft – 15 ft · Vario Valance not available with 13 ft 1 in projection.

		13 ft (156 in)	14 ft (168 in)	15 ft (180 in)
Projection	6 ft 7 in	—	—	—
	8 ft 2 in	—	—	—
	9 ft 10 in	—	—	—
	11 ft 6 in	$7,433	—	—
	13 ft 1 in	$7,867	$8,138	$8,517
	Vario Valance – Gear	$1,792	$1,843	$1,911
	Vario Valance – Motor	$2,409	$2,451	$2,512
	Alum. Square Bar	$85	$88	$103

With Tray, Hood, and Back

Protects the rear of the awning where it meets the wall. Always includes the hood. Essential for roof-mounted installations in heavy snow or rain regions.

Widths 6 ft – 12 ft · Vario Valance not available with 13 ft 1 in projection.

		6 ft (72 in)	7 ft (84 in)	8 ft (96 in)	9 ft (108 in)	10 ft (120 in)	11 ft (132 in)	12 ft (144 in)
Projection	6 ft 7 in	$5,060	$5,253	$5,580	$5,990	—	—	—
	8 ft 2 in	$5,251	$5,443	$5,768	$6,178	$6,383	—	—
	9 ft 10 in	—	$5,587	$5,912	$6,325	$6,527	$6,703	$7,074
	11 ft 6 in	—	—	$6,103	$6,513	$6,718	$6,893	$7,262
	13 ft 1 in	—	—	—	$6,803	$7,008	$7,184	$7,552
	Vario Valance – Gear	$964	$1,120	$1,196	$1,313	$1,474	$1,545	$1,631
	Vario Valance – Motor	$1,660	$1,804	$1,875	$1,977	$2,129	$2,185	$2,260
	Alum. Square Bar	$49	$49	$49	$66	$73	$73	$83

Widths 13 ft – 15 ft · Vario Valance not available with 13 ft 1 in projection.

		13 ft (156 in)	14 ft (168 in)	15 ft (180 in)
Projection	6 ft 7 in	—	—	—
	8 ft 2 in	—	—	—
	9 ft 10 in	—	—	—
	11 ft 6 in	$7,628	—	—
	13 ft 1 in	$8,063	$8,316	$8,722
	Vario Valance – Gear	$1,792	$1,843	$1,911
	Vario Valance – Motor	$2,409	$2,451	$2,512
	Alum. Square Bar	$85	$88	$103

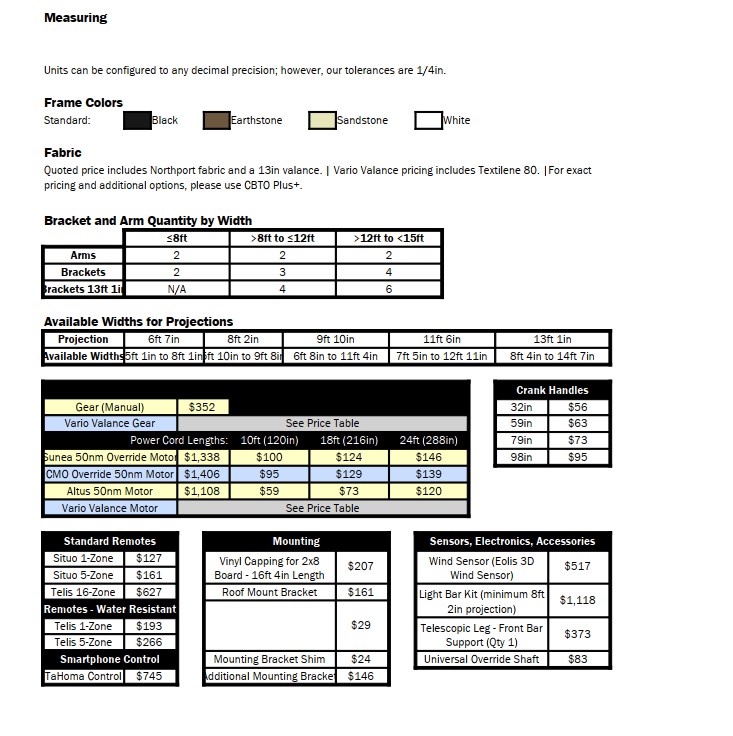

Step 2

Choose Your Options & Customizations

Once you've selected your awning size, choose from the options below.

Example: $5,883 (12 ft wide × 9 ft 10 in projection) + $352 (manual gear) + $63 (59 in crank handle) = $6,298 total — ask about our current DIY promotion.

Operators — Must be added (not included in pricing tables above)

Option	Base Price	10 ft cord (120 in)	18 ft cord (216 in)	24 ft cord (288 in)
Gear (Manual)	$352	—	—	—
Vario Valance Gear	See price tables above
Sunea 50nm Override Motor	$1,338	$100	$124	$146
CMO Override 50nm Motor	$1,406	$95	$129	$139
Altus 50nm Motor	$1,108	$59	$73	$120
Vario Valance Motor	See price tables above

Crank Handles

Length	Price
32 in	$56
59 in	$63
79 in	$73
98 in	$95

Standard Remotes

Remote	Price
Situo 1-Zone	$127
Situo 5-Zone	$161
Telis 16-Zone	$627

Remotes — Water Resistant

Remote	Price
Telis 1-Zone	$193
Telis 5-Zone	$266

Smartphone Control

Option	Price
TaHoma Control	$745

Bracket & Arm Quantity by Width

Component	≤8 ft	>8–12 ft	>12–15 ft
Arms	2	2	2
Brackets	2	3	4
Brackets (13 ft 1 in proj.)	N/A	4	6

Available Width Range per Projection

Projection	Min – Max Width
6 ft 7 in	5 ft 1 in – 8 ft 1 in
8 ft 2 in	6 ft 10 in – 9 ft 8 in
9 ft 10 in	6 ft 8 in – 11 ft 4 in
11 ft 6 in	7 ft 5 in – 12 ft 11 in
13 ft 1 in	8 ft 4 in – 14 ft 7 in

Mounting

Item	Price
Vinyl Capping for 2×8 Board – 16 ft 4 in Length	$207
Roof Mount Bracket	$161
Ledger Board Lags 4in × 5/16in Galvanized w/ Washers (Qty 25)	$29
Mounting Bracket Shim	$24
Additional Mounting Bracket	$146

Sensors, Electronics & Accessories

Item	Price
Wind Sensor (Eolis 3D Wind Sensor)	$517
Light Bar Kit (min. 8 ft 2 in projection)	$1,118
Telescopic Leg – Front Bar Support (Qty 1)	$373
Universal Override Shaft	$83

Step 3

Order Your Awning — Arrives in 6–7 Weeks

We understand that choosing the right awning can feel overwhelming — we're here to help. Fill out the form and our team will get in touch to help you finalize your order.
Do not forget to ask about our current DIY promotion.

Visit Our Showroom & Factory

25 Green Ct, Unit 3
Ajax, ON L1S 6W9
Canada

☎ (800) 668 6430, ext. 21

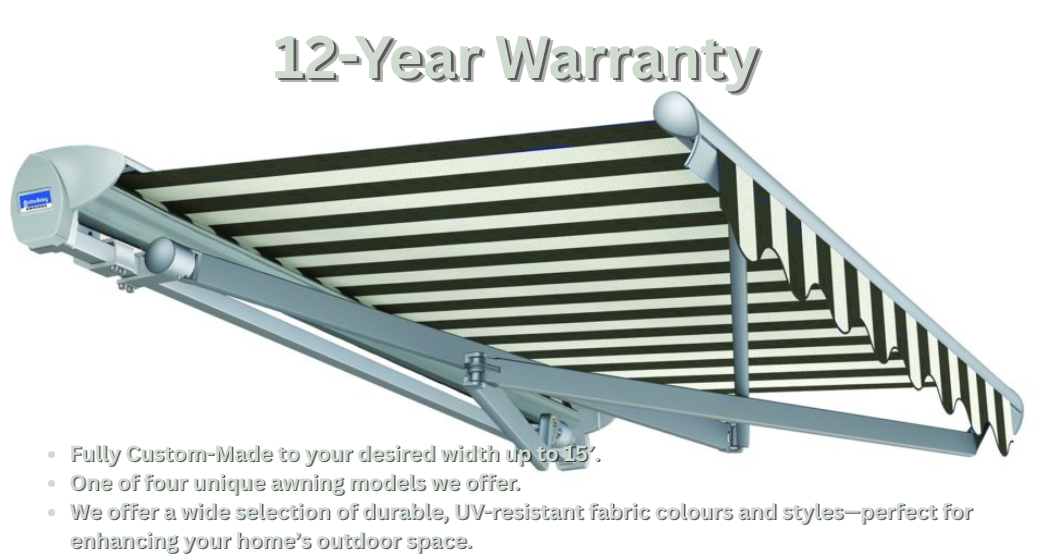

Model 2 – Narrow Width Retractable Awning

The Model 2 Slim-Fit is the right choice when your deck opening is too narrow for Model 1 but you still want maximum shade. The overlapping folding arms allow the awning to project farther out relative to its width than any standard model.

Key Features:

12-Year Warranty
Custom-made to your desired width up to 15 ft
Projections up to 13 ft 1 in for maximum shade coverage
One of four unique awning models we offer
Wide selection of durable, UV-resistant fabric colours and styles
Available frame colours: Black, Earthstone, Sandstone, White

* Product prices and configurations are subject to change without prior notice. Sometimes, DIY sales are only available through a local contractor; in such cases, any DIY or promotional pricing on this website does not apply.
